Automated handling and waterproofing system for the PIV

The Dantec‑manufactured PIV waterproofing and automated handling system comprises a periscope laser and the following components:

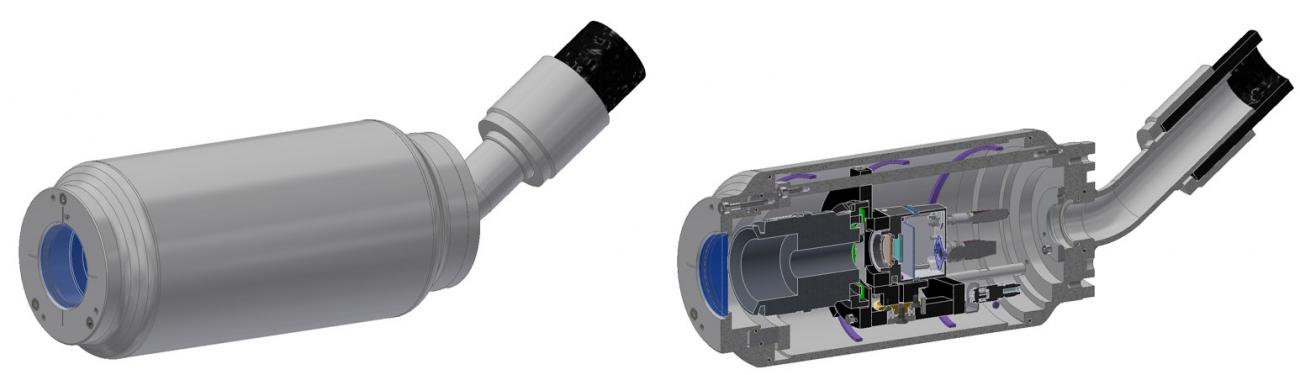

Special-21513S01 - Special item21513S01 Waterproof box

9081C0841 - FlowSense FCX 5M-124 Camera 2448 x 2048 pc 124 fps
C-mount, C-F-Mount adaptor, CoaXPress12 interface, requires one channel of CoaXPress12 frame grabber 9081C0811, min. delta t = 100ns with HighSpeed option 9081C0801, 8 or 12 Bit 2.74 µm pixel size. Backside illuminated CMOS sensor for high QE. Includes 5m Cable.

9081C0811 - CoaXpress12 Frame Grabber 4.ch for FlowSense FCX Series 4-Channel Frame Grabber supports 1, 2 or 4 cameras, only compatible with CoaXPress12 Cameras, up to 6250 MB/s transfer rate, requires PCIe x8 slot and 8 Pin 12 Volt Power connector from the PC

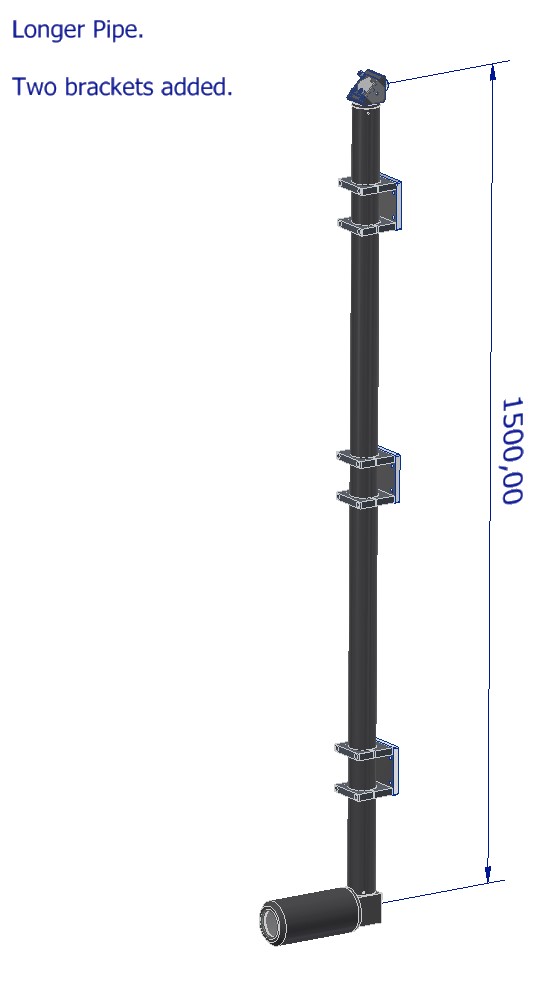

Special-21474S02 - Special item: 21474S02 Periscoppe laser

9080S1661 - DynamicStudio Software SUA reinstatement >=4 years Software update agreement reinstatement after 4 years or more after expiry of warranty or a preceding software update agreement.

9080X0911 - Variable Focus Module
Allows to focus the laser light sheet from 200 mm to 4000 mm

9080X8961 - Entrance Module P7.4 mm

9080X0961 - Angle Module 4
Angle Module 4

9080X0951 - Angle Module 2
Angle Module 2
