The third Laser Doppler Anemometer - LDA


Laser Doppler Anemometry (LDA), also known as Laser Doppler Velocimetry (LDV), is an optical technique ideal for non-intrusive 1D, 2D and 3D point measurement of velocity and turbulence distribution in both free flows and internal flows. Science and industry apply LDA systems to gain a clearer understanding of fluid mechanics. The measurement results are important steps in fine-tuning product designs to improve aerodynamic efficiency, quality and safety.

Features: Non intrusive. No calibration required. Velocity range 0 to supersonic. One, two or three velocity components simultaneously. Measurement distance from centimeters to meters. Flow reversals can be measured. High spatial and temporal resolution. Instantaneous and time averaged.

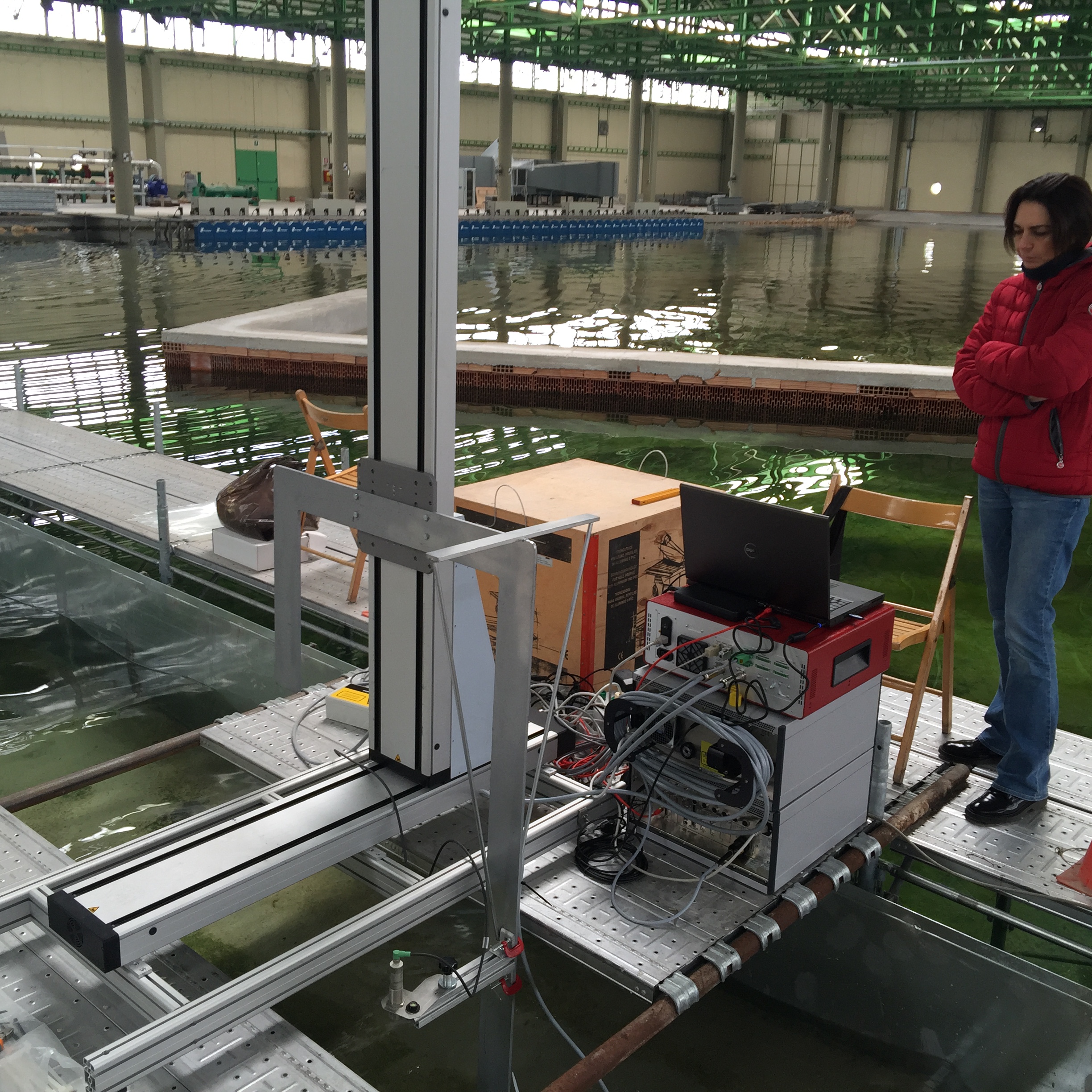

Characteristics of our 2D Dantec LDA:

01 FlowLite 2D High Power 1,35mm beam, 532/561nm, 27 mm probe, 2 x 200 mW    532/561 nm laser

02 Front Lens for water, 27mm, f=160mm Stainless Steel

03 5 m cable Extension for 2D probe 1.35 mm Beams

04 Window for 27 mm Optics for Use in Water

05 FlowLite 1D LDA detection unit Inc. Photomultiplier for 532nm

06 Flowlite 2D LDA detection unit upgrade. For 532nm and 561nm

07 BSA F60 Flow Processor ready for internal PMT

08 BSA F60 Additional Velocity Channel for internal PMT

09 Analog Input Option for BSA F/P Processors

10 BSA Flow Software for 62Nxx Processors

11 Advanced Graphics Add-on for 62S10 BSA Flow

12 2D Traversing Mechanism Range XZ 1010mmx1500mm

13 2-D Traversing Controller, line voltage 100-250V

14 PC Sistema informatico portatile dedicato, 17”, processore serie I7, 16GB RAM, HD 750 GB

15 Front Lens, 60mm, f=400mm

16 2x Beam Expander for 27 mm 61X40 probe, compatible with 60 mm front lenses
